8" Radius Arm Drop Suspension System Zone Offroad | 11-16 Ford F250 - F350

  • $1,582.79


Zone Offroad 8" RADIUS ARM DROP SUSPENSION SYSTEM is designed for improved performace and capability. The Zone Offroad Lift System also gives up to 38" tire clearance.

The 8 inch ZONE OFFROAD LIFT SYSTEM has a pair of frame mounted radius arm drop brackets to correct radius arm geometry. These brackets are built from 1/4" steel and key off the factory radius arm pockets and tie into the frame rail for extra rigidity. Full length replacement coil springs are supplied to provide the extra altitude.

These springs are specially designed for the weight of the the diesel trucks and pairs with the FOX 2.0 adventure series gas shocks to provide a smooth ride on and off-road. These springs are specially designed for the weight of the the diesel trucks and pairs with the FOX 2.0 adventure series gas shocks to provide a smooth ride on and off-road.

Correction for the steering is made from a forged drop pitman arm that improves the operating angle while a massive 1/4" steel fabricated track bar drop bracket recenters the front axle. Keeping the steering linkage angles in sych for predictable Ford Jeep handling.

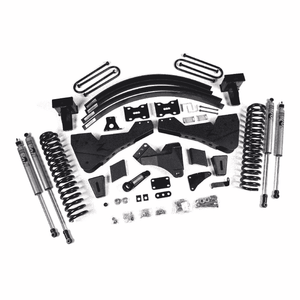

Zone Offroad Radius Arm Drop Suspension System Kit Includes:

  • Sway bar relocation brackets
  • Brake line drop brackets
  • Ball joint alignment cams
  • Bump stop extensions
  • New steering stabilizer mounts
  • FOX 2.0 adventure series gas shocks

In the rear this kit retains the rear leaf springs and swaps out the factory blocks for a 6" fabricated rear lift blocks with integrated bump stop wings, dual add-a-leafs, longer u-bolts and new u-bolt plates for increased load capacity and a level stance.

Also supplied for the rear is a replacement brake line bracket and matching FOX 2.0 adventure series gas shocks to pair with the front for improved performance.

Zone Offroad Lift System Fits:

  • 2011-2016 Ford F250 4WD
  • 2011-2016 Ford F350 4WD
